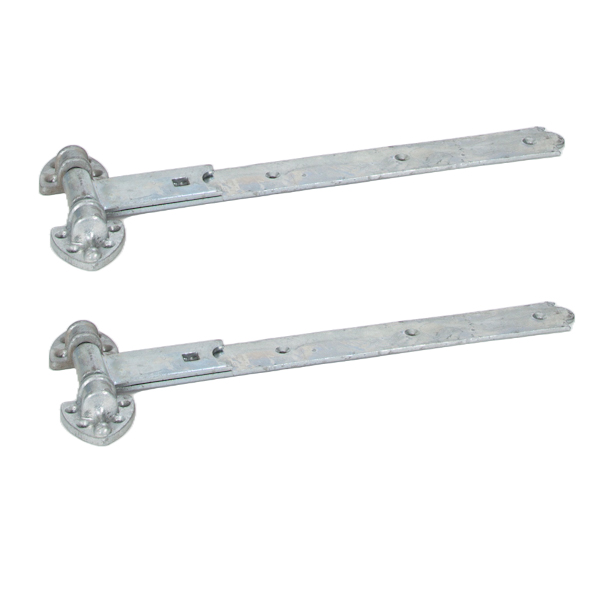

A pair of heavy-duty gate hinges suitable for hanging gates, shed doors etc. Cups are fitted to the top & bottom of the hinge pivot, which secures the gate firmly in position and prevents the gate from being lifted or removed. They have a galvanised finish for long service life. Fixings are sold separately, contact us if you would like to add fixings to your order.
Dimensions:
Cups: 60 x 60mm
Length excluding pivot: 350mm
Length including pivot: 370mm
Pivot: 12mm diameter
Hinge width: 37mm
Hinge depth: 4mm
Screw holes (x3): 7mm diameter, countersunk
Bolt hole: 11 x 11mm (use M10 carriage bolt, cup square hex)
