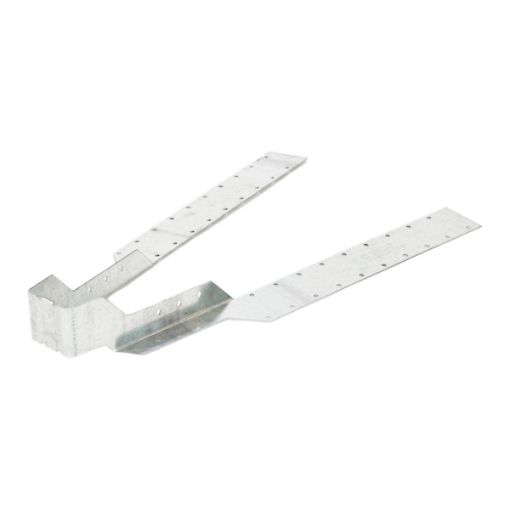

    450mm X 47mm EXTENDED JOIST HANGER - GALV - JHA450/47

    Brand: Simpson Strong-Tie
    Galvanised joist hanger for constructing timber to timber framework. Precision formed and engineered for fast installation and maximum loads. - Suitable for 47mm wide timber - Width - 145mm (including fixing wings) - Length - 480mm - Depth - 65mm
    Manufacturer part number: JHA450/47
    Availability: 91 in stock
    £4.00 Inc. VAT
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Galvanised joist hanger for constructing timber to timber framework. Precision formed and engineered for fast installation and maximum loads.

    - Suitable for 47mm wide timber
    - Width - 145mm (including fixing wings)
    - Length - 480mm
    - Depth - 65mm

    Galvanised joist hanger with extra long legs. Wider strap provides more surface area on the supporting timber and allows increased nail spacing.
    Minimum and maximum nailing schedules are stamped into the strap providing correct installation information for site operatives.

    Install using 3.75 x 30mm square twist nails

    Nailing without top wrap: 28 nails / hanger
    1 kg square twist nails installs 12 hangers

    Nailing with top wrap: 18 nails / hanger
    1 kg square twist nails installs 19 hangers

    *
    *
    *
    *
