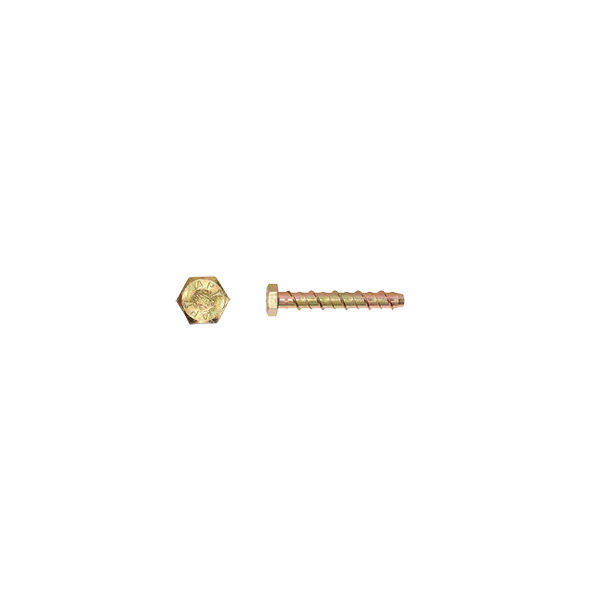

    M10 X 75 MASONRY BOLT

    A self tapping bolt suitable for concrete, stone, brick, marble, wood and block (solid or hollow). Safe anchorage achieved without the need of high tightening forces. Can be removed and re-fixed into the same hole, providing the thread is correctly aligned. No expansion forces enables close to the edge fixing. Drill Bit Dia. - 10mm Anchor Length - 75mm Washer Size - 12mm (M12) Min Hole Depth - 70mm Min Over Drill Depth - 20mm Min. Embed Depth - 50mm Max. Fixture Thickness - 25mm Drill Bit Dia. for clearance - 12mm (to prevent binding when tightening bolt) Head Type - Hex Head, 17mm (Across Flats) Driver Type - Impact driver, socket, spanner Max Tightening Torque - 60Nm
    Availability: 187 in stock
    £1.03 Inc. VAT
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    A self tapping bolt suitable for concrete, stone, brick, marble, wood and block (solid or hollow). Safe anchorage achieved without the need of high tightening forces. Can be removed and re-fixed into the same hole, providing the thread is correctly aligned. No expansion forces enables close to the edge fixing.

    Drill Bit Dia. - 10mm
    Anchor Length - 75mm
    Washer Size - 12mm (M12)
    Min Hole Depth - 70mm
    Min Over Drill Depth - 20mm
    Min. Embed Depth - 50mm
    Max. Fixture Thickness - 25mm
    Drill Bit Dia. for clearance - 12mm (to prevent binding when tightening bolt)
    Head Type - Hex Head, 17mm (Across Flats)
    Driver Type - Impact driver, socket, spanner
    Max Tightening Torque - 60Nm

    *
    *
    *
    *
